Against on ExpressionTree

Previous part: Part1, Part2

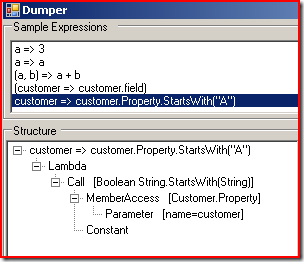

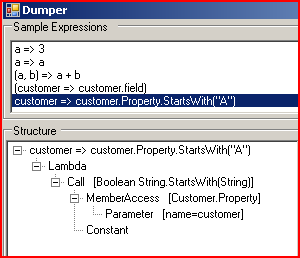

Ok, lets move on on the anatomy of an expression, let’s take as example the following screenshot.

The original expression is customer => customer.Property.StartsWith(“A”), and the expression is dissected in a node of type Lambda that contains a Call node. The Call node is a node that express the invocation of a method, and internally contains all the needed information.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

protected override Expression VisitMethodCall(MethodCallExpression m)
{
    StringBuilder parameterList = new StringBuilder();
    foreach (ParameterInfo pi in m.Method.GetParameters()) {
        parameterList.Append(pi.ParameterType.Name);
        parameterList.Append(", ");
        }
    if (parameterList.Length > 0) parameterList.Length -= 2;
    Current.Text = String.Format("{0}   [{3} {1}.{2}({4})]",
        Current.Text, m.Method.DeclaringType.Name, m.Method.Name,
        m.Method.ReturnType.Name, parameterList.ToString());
    return base.VisitMethodCall(m);
}

The real node type is MethodCallExpression and internally contains the MethodInfo object that will be invocated, in this example the StartsWith of class String. The base visitor has this code for the Callnode

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

protected virtual Expression VisitMethodCall(MethodCallExpression m)
{
    Expression obj = this.Visit(m.Object);
    IEnumerable<Expression> args = this.VisitExpressionList(m.Arguments);
    if (obj != m.Object || args != m.Arguments)
    {
        return Expression.Call(obj, m.Method, args);
    }
    return m;
}

So a Call node internally has a property called Object that represent the Expression that will return the instance of the object to call the method from, then the MethodCallExpression has an Arguments property that contains a series of arguments to call the method. All these properties are of type Expression, this is the most important part. If you look at the image at the beginning of the post you can see that the Call node contains two nodes, the first is the object to invocate the method on, and is a MemberAccess, because we need to evaluate the call on the “Property” property of the customer object.

To really understand how the Expression is executed you need to traverse the tree from the leaf, first of all we see a parameter node (customer) this is the parameter of the whole expression, then we have a MemberAccess used to found the value of Property, then the MemberAccess node has a sibiling of type Constant , that represent the first and only parameter of the parent Call node, so the call can use inner MemberInfo to dynamically invoke the StartsWith.

I hope I was quite clear. If you are interested in code you can grab from subversion on http://nablasoft.googlecode.com/svn/trunk/Linq/ExpressionTree and the revision of this example is 10.

Alk.
